Hipoid Dişli Üniteleri (HT)
- Size: | 090 | 115 | 140 | 170 | 215 |(corresponds to edge length of the gear unit)
- Monolithic housing (aluminium)

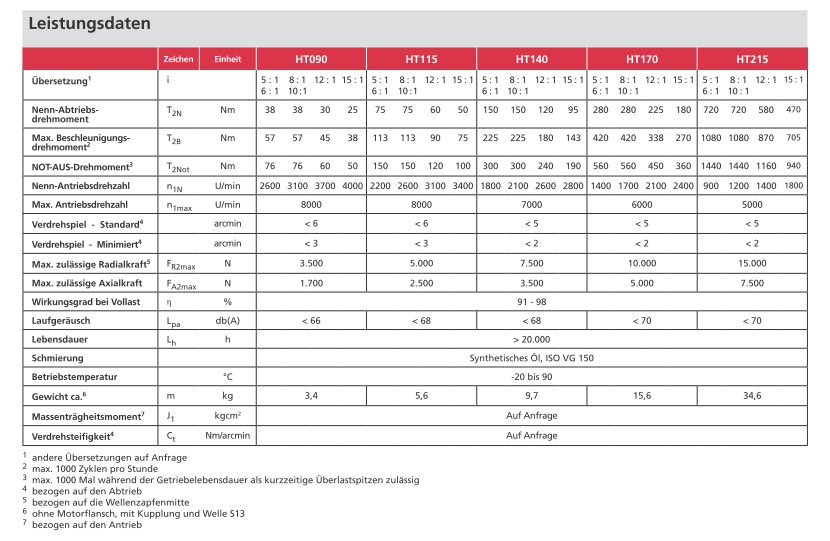

- Gear ratio range: 5 to 15
- Max. torsional backlash (standard) ≤ 6 to ≤ 5 arcmin
- Max. torsional backlash (reduced) ≤ 3 to ≤ 2 arcmin
- Max. acceleration torque from 38 to 1080 Nm
- Output:

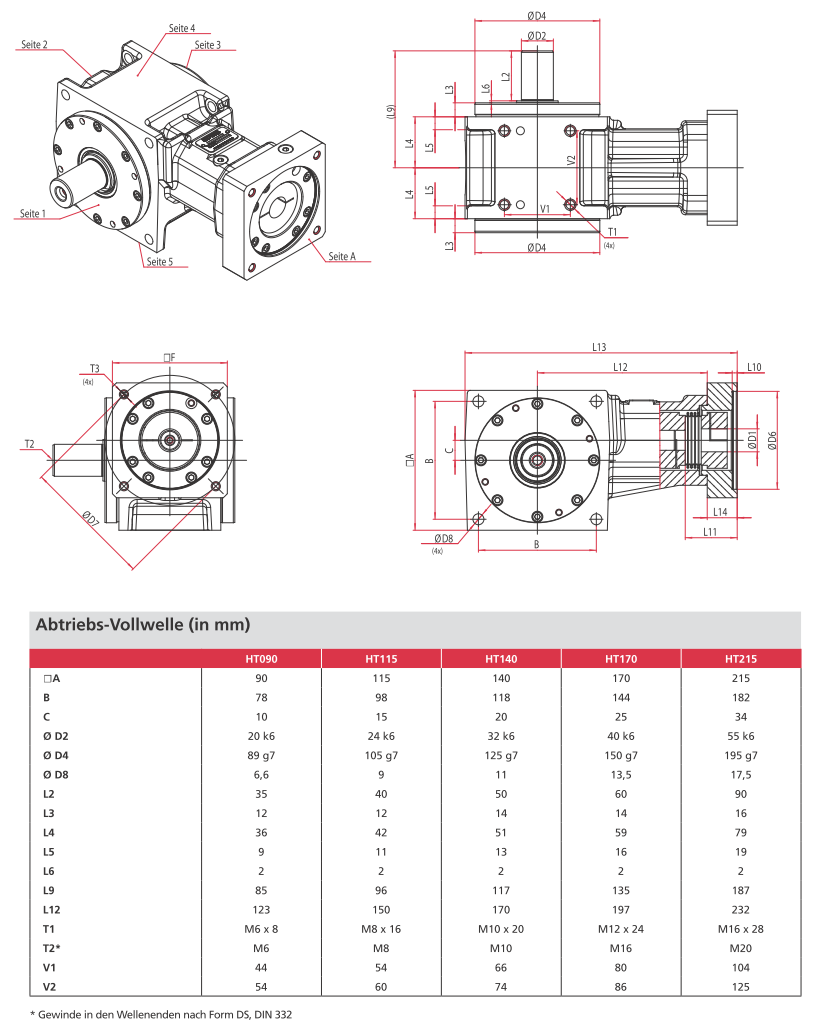

– single or double-sided cylindr. output shaft without feather key

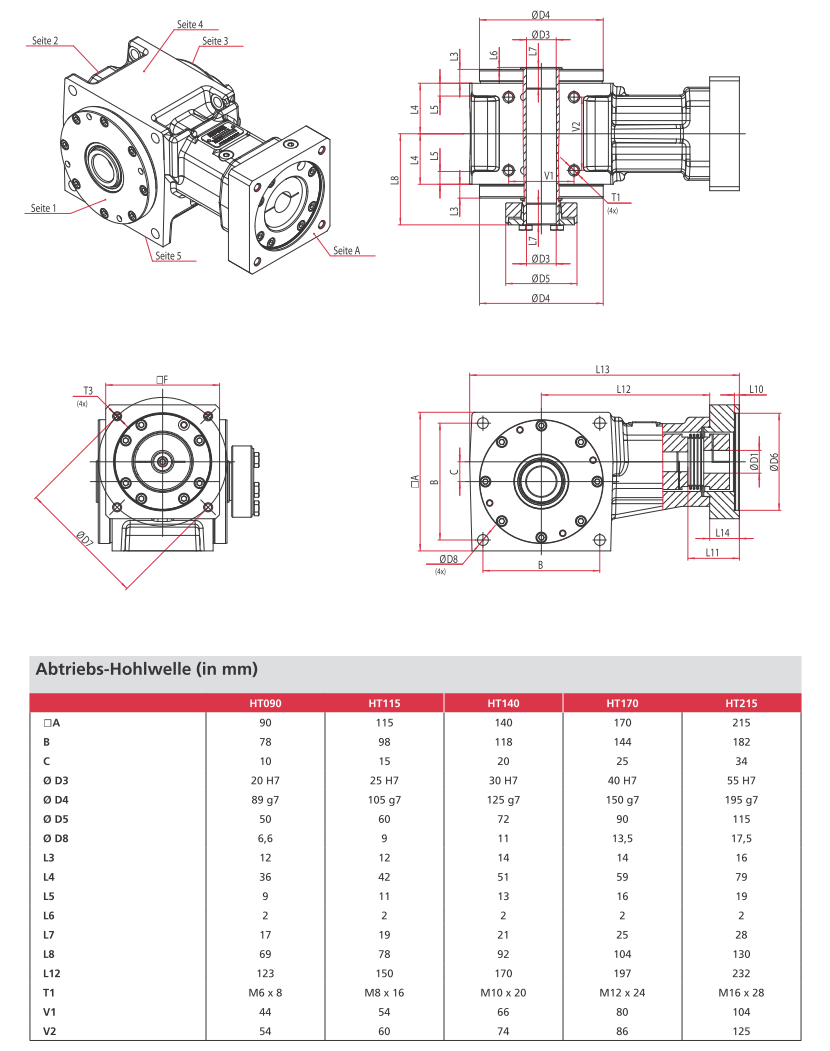

– hollow shaft with shrink disc - Input:

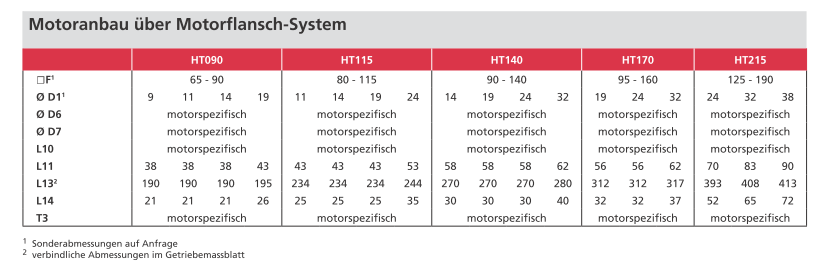

– Servo motor adapter
