Planet Dişli Redüktörler (PE)

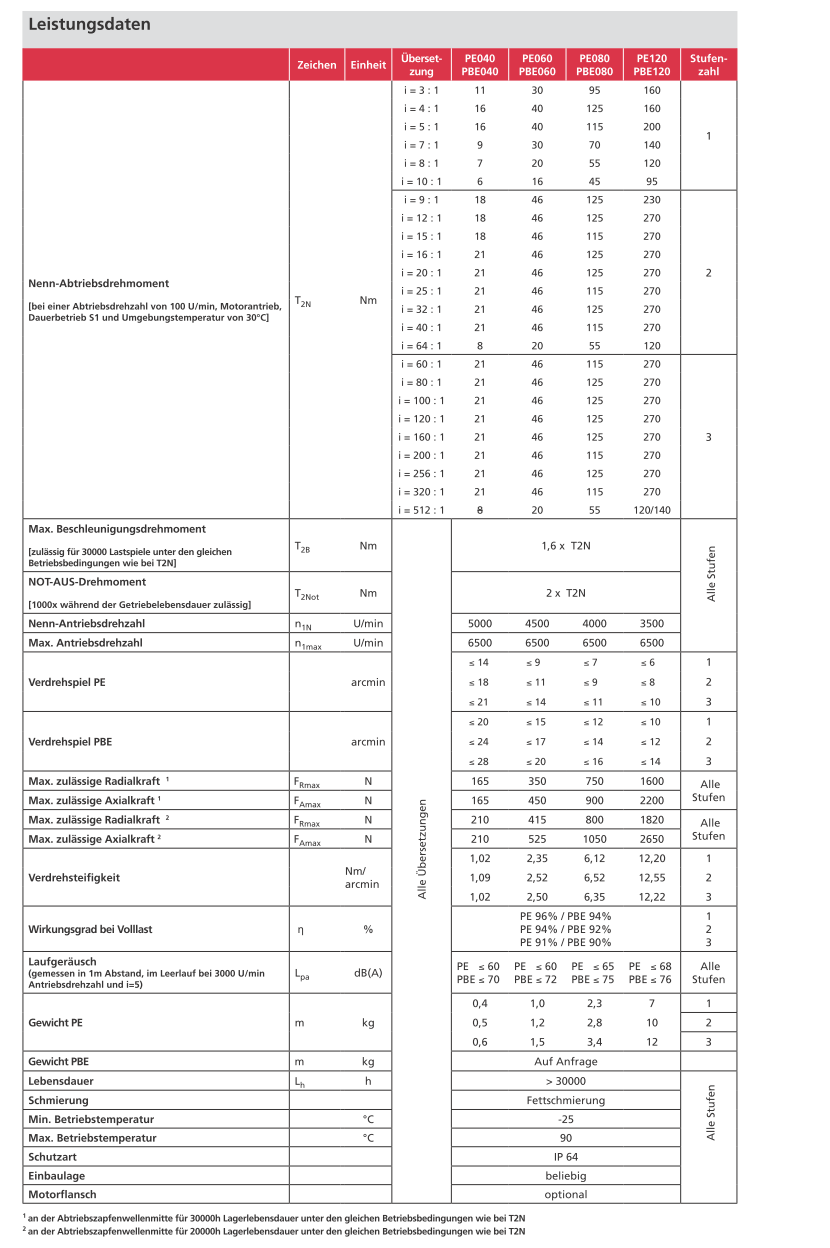

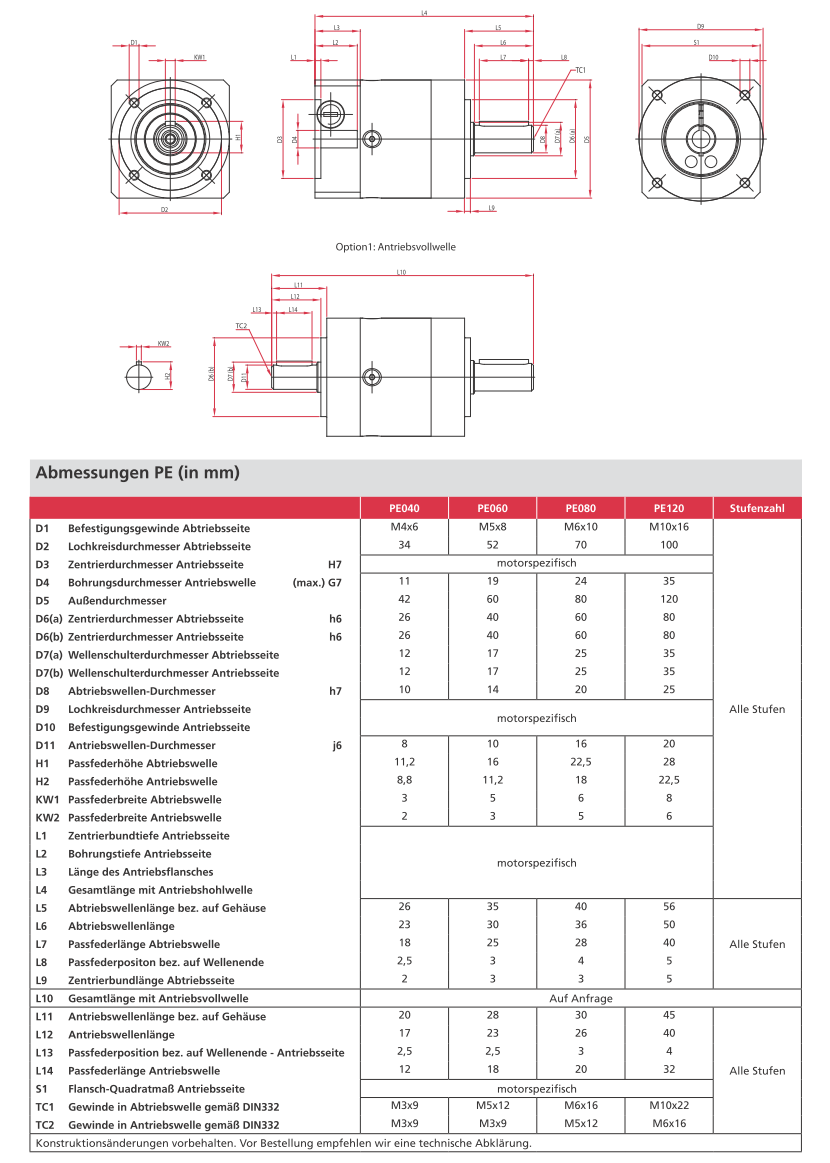

- Size: | 040 | 060 | 080 | 120 |
- Gear ratio range: 3 to 512
- Max. torsional backlash (1-stage) ≤ 13 – ≤ 5 arcmin
- Max. acceleration torque 9.6 – 432 Nm
- Output:
– Housing flange with threaded hole (B14)
– output shaft with feather key
– smooth output shaft - Input:
– Servo motor adapter
– Input shaft with feather key
