Hipoid Dişli Üniteleri (SHT)
- Size: | 100 | 120 | 150 |(Edge lengths: 103 / 124 / 150 mm)
- Cast aluminium housing

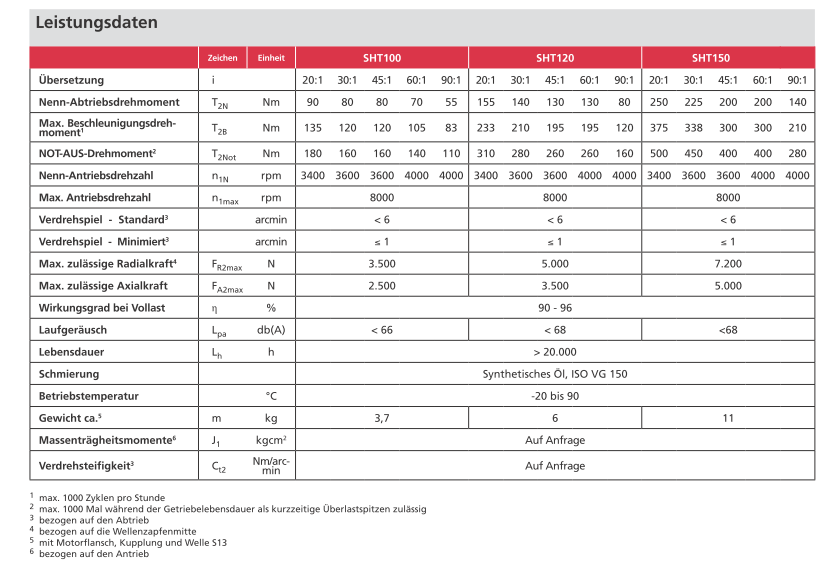

- Gear ratio range: 20 to 90
- Max. torsional backlash (standard) ≤ 6 arcmin
- Max. torsional backlash (reduced) ≤ 1 arcmin
- Max. acceleration torque from 83 to 375 Nm

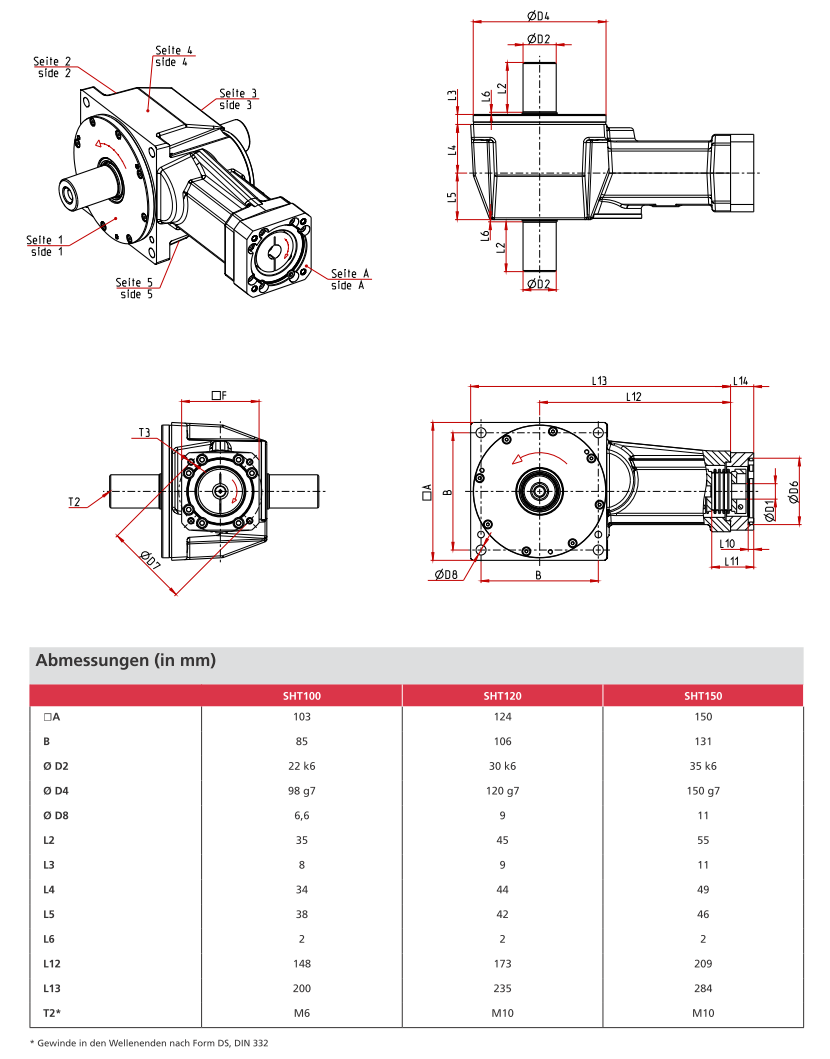

- Output:
– smooth single or double-extended output shaft

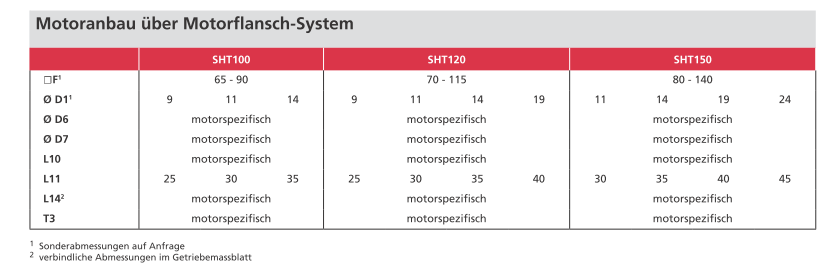

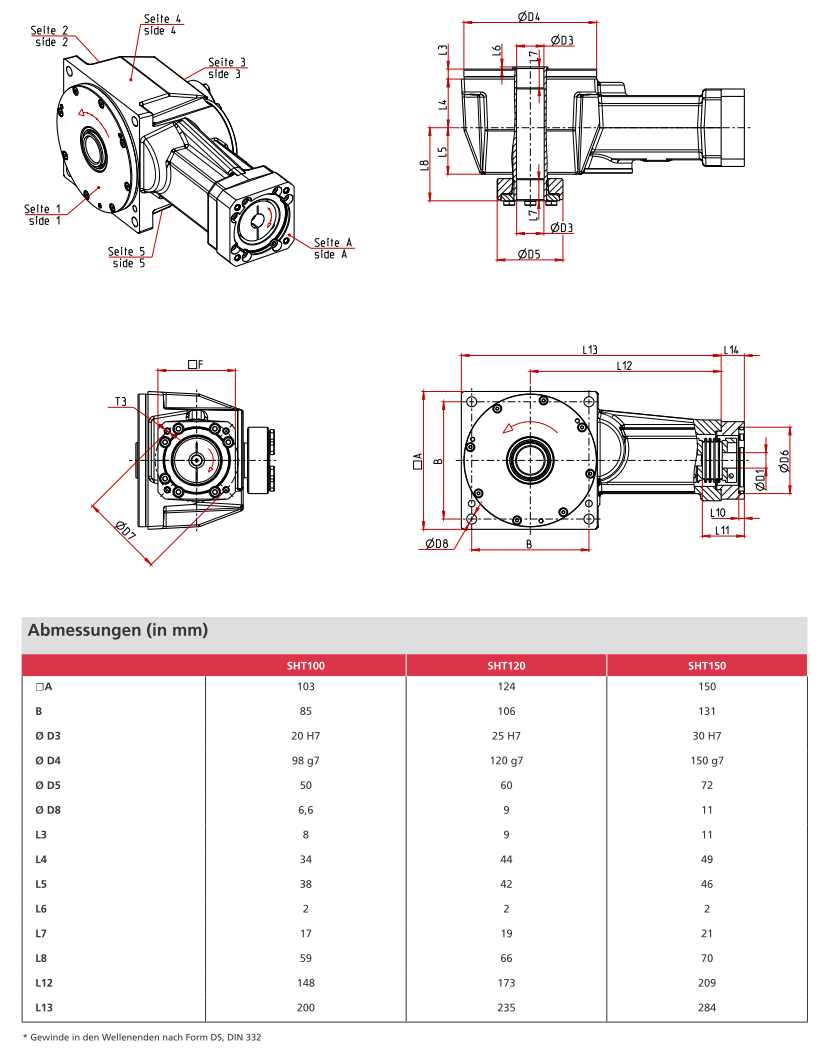

– hollow shaft with shrink disc - Input:
– Servo motor adapter
Kataloglar
