Konik Dişli Üniteleri (BT)

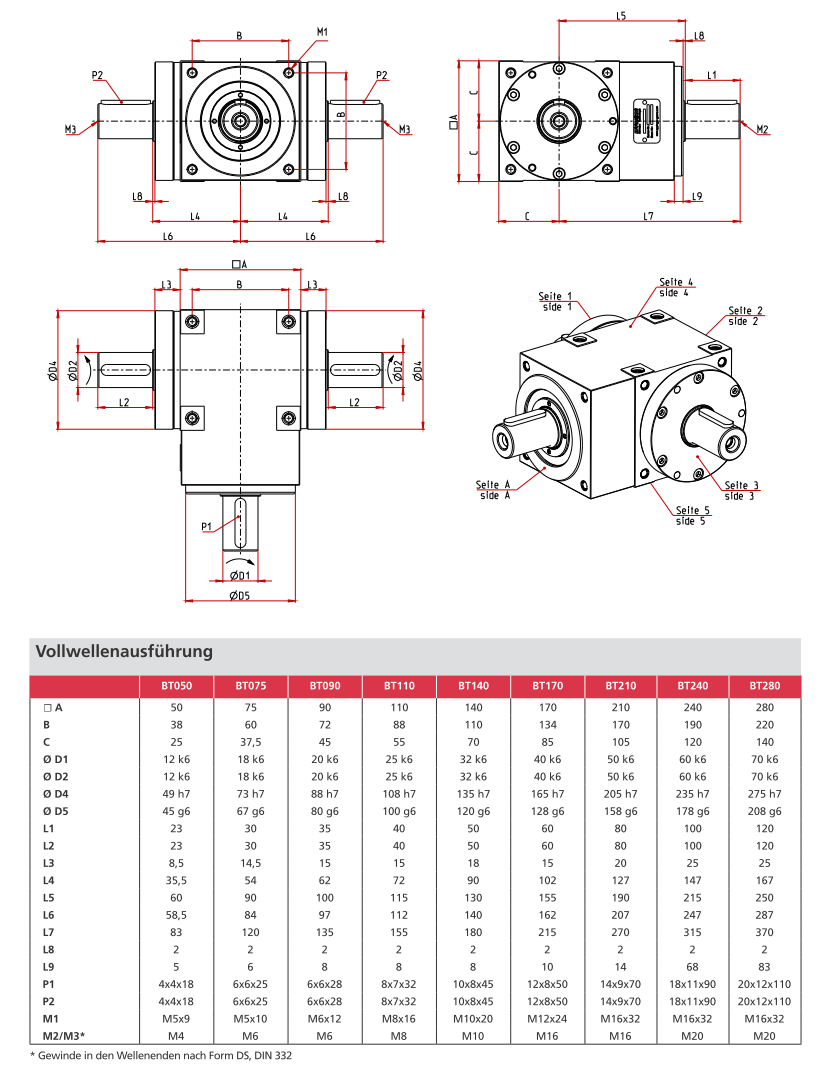

- Size: | 050 | 075 | 090 | 110 | 140 | 170 | 210 | 240 | 280 |(corresponds to the edge length of the gear unit)
- monolithic steel or cast-iron housing with identical threaded holes on all sides
- Gear ratio range: 1 to 5
- Max. torsional backlash (standard) ≤ 16 to ≤ 10 arcmin
- Max. torsional backlash (reduced) ≤ 10 to ≤ 5 arcmin

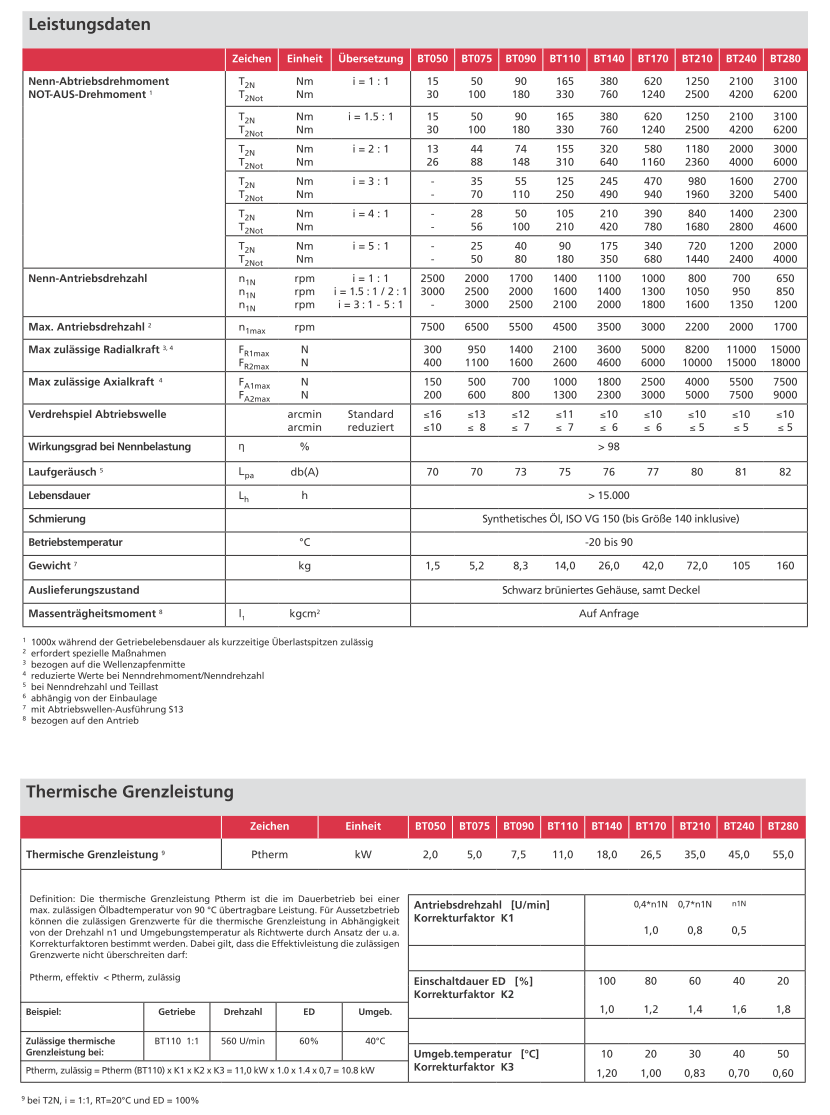

- Max. acceleration torque from 23 Nm to 4650 Nm
- Output:
– single or double-extended output shaft with feather key

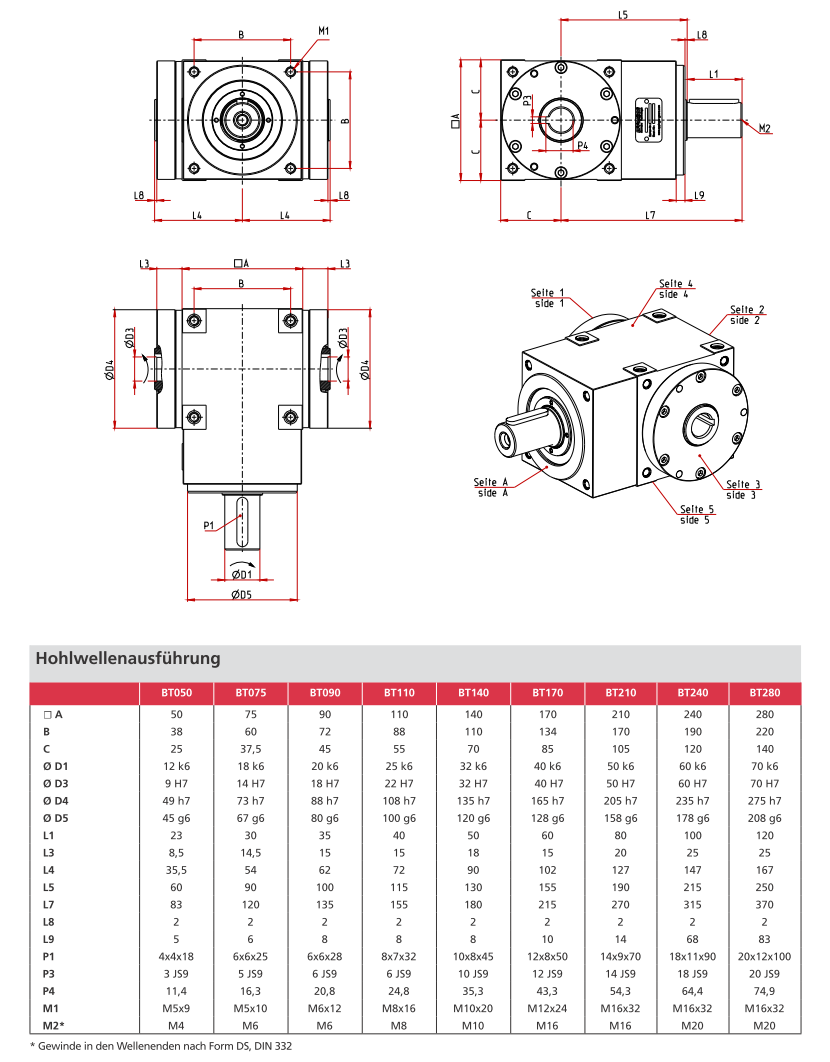

– hollow shaft with keyway - Input:
– input shaft with feather key
